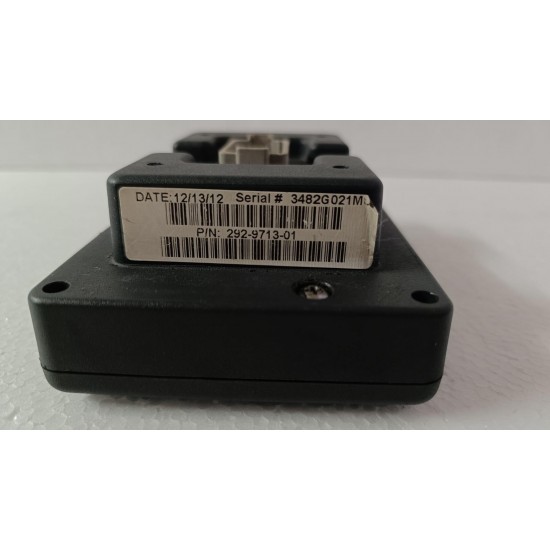

CATERPILLAR 292-9713-01 MINI MARINE POWER DISPLAY (MMPD)

ELECTRONIC CONTROL MODULE

Description:
Mini marine power display (292-9713), ormmPD, is a self-contained engine monitoring and display systems that provide trouble-free operation, using engine and transmission information that is easy to read and understand, delivered in a compact package. The mini MPD is functionally identical to the MPD and is 55% smaller in overall size.

Attributes:

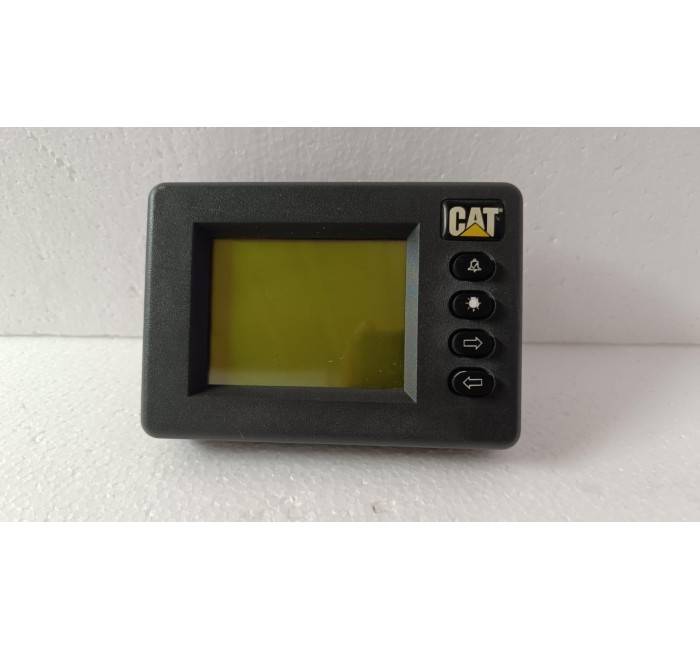

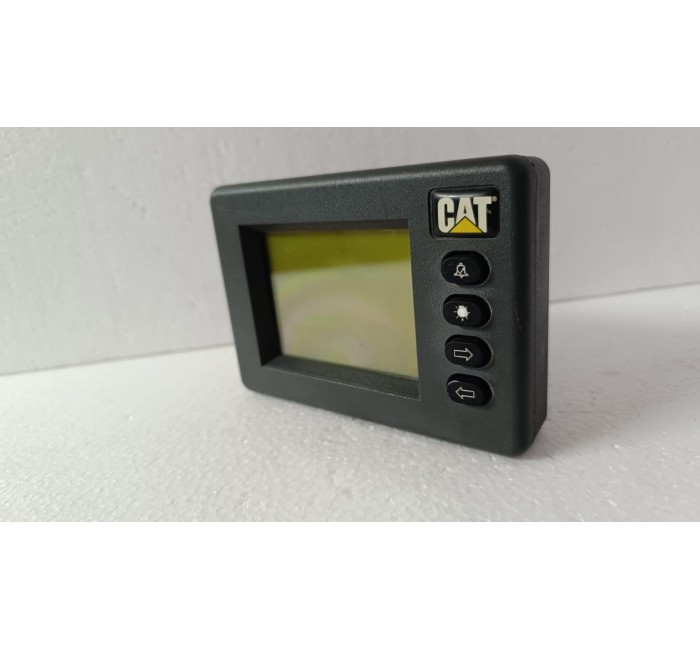

• Polycarbonate module with red LCD digital display
• Double-edge lit adjustable red backlighting provides exceptional night viewing
• 4 sealed switch inputs
• 9-32 V power supply
• 320 X 240 resolution

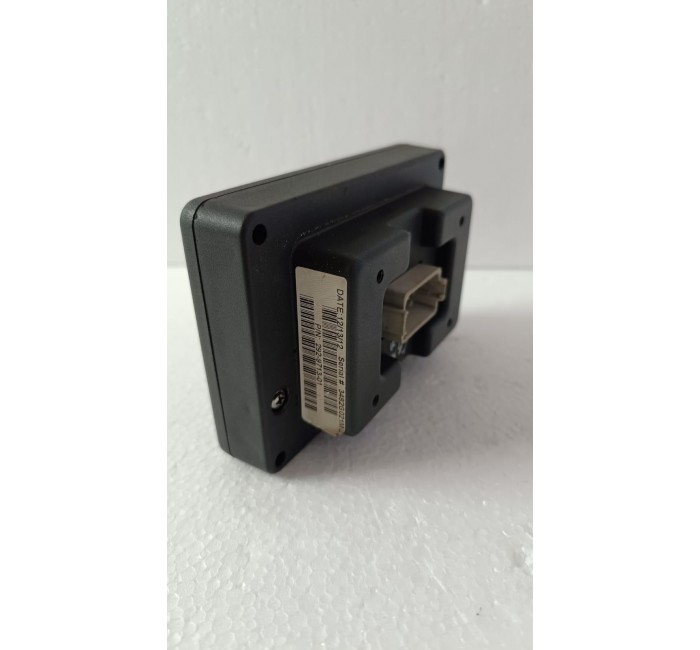

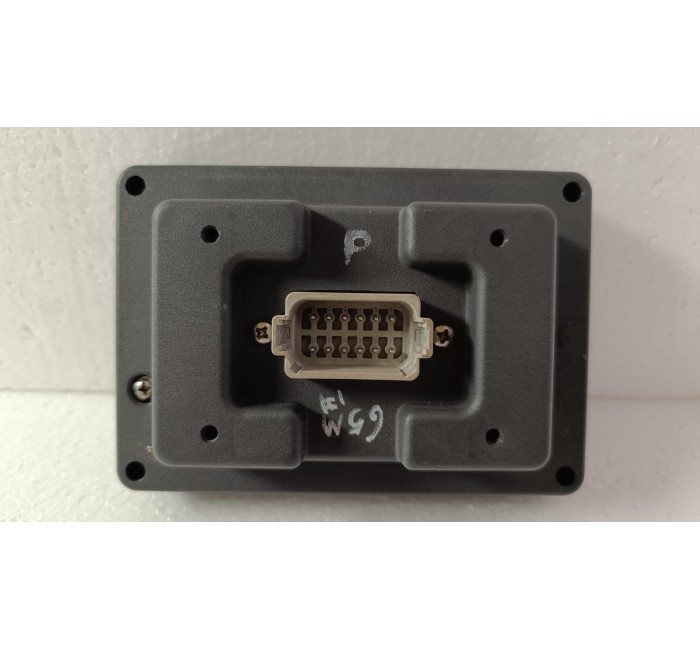

• Connector: 12 Pin Connector
• ROHS Compliant
• Length: 147mm (5.79 inches)
• Width: 102mm (4.02 inches)
• Height: 52.36mm (2.06 inches)
